Practical case: Light alarm with relay and door sensor

Materials

• 1 × 12 V DC power supply (500 mA or more).
• 1 × 12 V DC relay, 1 changeover pole (SPDT: COM, NO, NC contacts).
• 1 × Magnetic door switch (reed type with magnet, normally closed or normally open contact; we will use normally closed/NC type).
• 1 × Protection diode for the relay coil (for example 1N4007).
• 1 × 12 V lamp or 12 V LED strip (max. current according to relay contact capacity; e.g. ≤ 1 A).
• 1 × Indicator LED (optional, for example standard 5 mm red LED).
• 1 × Resistor for the indicator LED (1 kΩ, 1/4 W).
• Wires and breadboard (if the relay is for PCB) or terminal block.
• 1 × Digital multimeter (for voltage and current).

Wiring guide

Treat this section as the official connection specification. The ASCII schematic in the following section implements EXACTLY these connections.

• Main power:
• Connect the positive terminal of the 12 V supply to the node labeled +12V.

• Connect the negative terminal of the 12 V supply to the node labeled GND.

• Relay coil:

• Connect one terminal of the relay coil to the +12V node.

• Connect the other terminal of the relay coil to the VB node.

• Magnetic door switch (sensor):

• Connect one of the terminals of the magnetic switch to the VB node.
• Connect the other terminal of the magnetic switch to the GND node.

• A normally closed (NC) switch is assumed: with the door closed, the contact is closed and connects VB node to GND.

• Protection diode (flyback diode):

• Connect the diode cathode (marked with a band, in the schematic it will appear as [D1] 1N4007) to the +12V node.
• Connect the diode anode to the VB node.

• The diode is in parallel with the relay coil, but reverse-biased with respect to the power supply (it MUST NOT conduct in normal operation).

• Relay power contacts (for the 12 V lamp/LED):

• Use the relay’s common (COM) and normally open (NO) contacts.
• Connect the relay COM contact to the +12V node.
• Connect the relay NO contact to the VL node.
• Connect the other terminal of the 12 V lamp/LED to the GND node.
• Connect the VL node to one of the terminals of the 12 V lamp/LED.

• The relay NC contact is not used in this practical case; leave it unconnected.

• Relay activation indicator LED (optional):

• Connect the indicator LED anode (positive side) to the +12V node through the resistor:
  • Connect the +12V node to one end of the resistor [R1] 1 kΩ.
  • Connect the other end of [R1] to the VI node.
• Connect the indicator LED cathode to the VB node.
• The VI node only serves as a junction between resistor [R1] and the indicator LED anode.

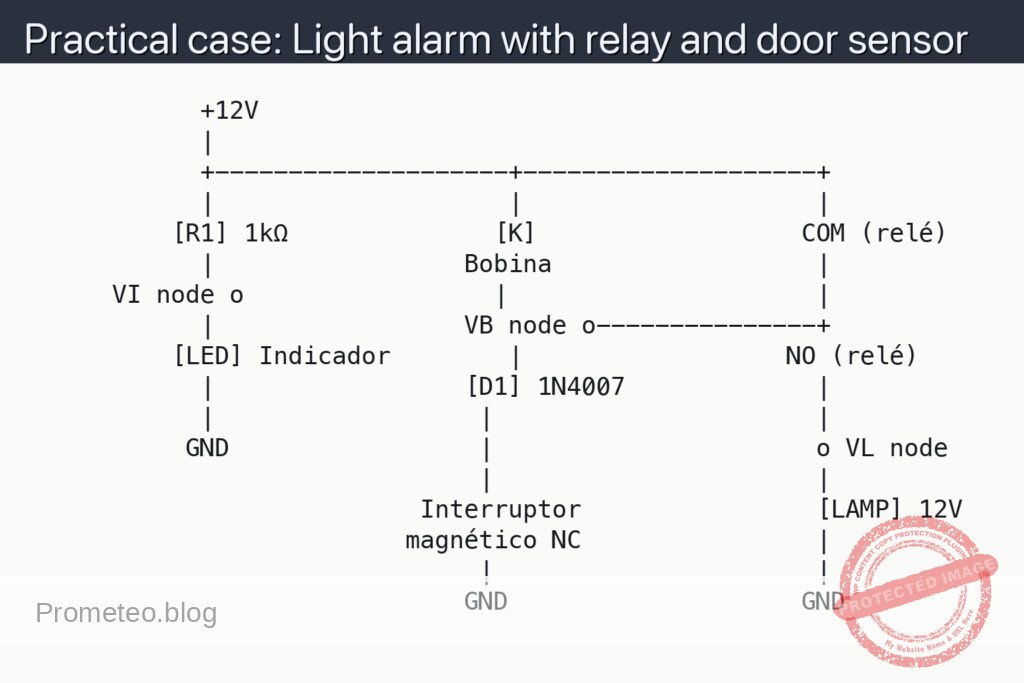

Schematic

            +12V
            |
            +--------------------+--------------------+
            |                    |                    |
          [R1] 1kΩ              [K]                  COM (relé)
            |                 Bobina                  |
      VI node o                 |                     |
            |                 VB node o---------------+
          [LED] Indicador        |                  NO (relé)
            |                 [D1] 1N4007             |
            |                  |                      |
           GND                 |                      o VL node
                               |                      |
                           Interruptor                [LAMP] 12V
                          magnético NC                |
                               |                      |
                              GND                    GND

Quick legend:
– [K] Bobina is the relay coil (between +12V and VB node).
– COM and NO are the relay power contacts.
– [LAMP] 12V is the 12 V lamp or load.
– [LED] Indicador is the small panel LED, with its resistor [R1] 1kΩ.
– [D1] 1N4007 is the coil protection diode.

Measurements and tests

• Basic voltage verification:

  • Measure the voltage between +12V and GND with the multimeter in DC voltmeter mode. It should read ~12 V.
  • With the door CLOSED (NC switch closed), measure between VB node and GND. It should read ~0 V (it is at ground through the switch).
  • With the door OPEN (switch open), measure between VB node and GND. It should read approximately 12 V (the coil is powered).

• Relay activation check:

  • With the multimeter in DC voltmeter mode, measure between COM and NO of the relay:
    • Door closed: COM-NO should show a voltage close to that of the load or be “open” (if you measure continuity, it should indicate open circuit).
    • Door open: COM-NO should show a very low resistance (almost a short circuit); in voltmeter mode, the voltage between COM and NO will be ≈ 0 V when the relay is activated.
  • Observe the 12 V lamp/LED: it should clearly turn on when the door opens and turn off when the door closes.

• Relay coil current measurement (I_coil):

  • I_coil (coil current) is the current that flows through the relay coil when it is activated.
  • To measure it, set the multimeter to DC ammeter mode and place it in series with the coil:
    • Disconnect the wire that goes from +12V to the coil.
    • Connect the positive terminal of the ammeter to +12V.
    • Connect the negative terminal of the ammeter to the coil terminal that previously went to +12V.
  • Open the door to activate the relay and read the current: compare it with the typical value from the datasheet (e.g., 40 mA). It should be in a similar range.

• Verification of voltage drop across the load (V_LAMP):

  • V_LAMP is the voltage that appears directly across the terminals of the 12 V lamp/LED.
  • With the multimeter in DC voltmeter mode, place the test leads on each end of the lamp.
  • With the door open (relay activated), it should read a value close to 12 V.
  • With the door closed (relay deactivated), V_LAMP should be ≈ 0 V.

• Dynamic functional tests:

  • Open and close the door repeatedly, checking:
    • That the relay operates without flickering or strange noises.
    • That the indicator LED (if installed) lights only when the relay is activated (door open).
    • That neither the relay nor the lamp heats excessively for prolonged use times (touch carefully after several minutes).

Common errors and how to avoid them

• Forgetting the coil protection diode:
• When the coil is disconnected, a voltage spike is generated that can damage other components.

• Make sure that [D1] 1N4007 is in parallel with the coil, with cathode to +12V and anode to VB node.

• Swapping the relay contacts (accidentally using NC instead of NO):

• Check the datasheet or the drawing on the relay housing to correctly identify COM, NO, and NC.

• If you connect the lamp to NC instead of NO, the light will be on at rest and off when the door is opened (inverted behavior).

• Using the wrong type of magnetic switch:

• This practical case assumes an NC switch (closed with the door closed).

• If your sensor is normally open (NO), the logic is inverted: review the measurements and adapt if necessary (you might want to use the relay’s NC contact to keep the desired behavior).

• Overloading the relay contacts:

• Check the maximum allowable current of the relay contacts (e.g. 3 A at 12 V DC).

• Make sure the lamp or load does not exceed that value; if it is higher, you must use a more robust relay or an intermediate stage (contactors, MOSFET, etc.).

• Incorrect connection of the indicator LED:

• Do not forget the series resistor [R1] 1 kΩ to limit LED current.
• Check polarity: anode toward the resistor (and then to +12V), cathode toward VB node.

Safety and good practices

• Always work with the supply disconnected while making or modifying connections.
• Even though you are only using 12 V, avoid short circuits: they can damage the supply or dangerously heat the wires.
• If you adapt this circuit to control mains voltages (230 V AC) through the relay:
• Maintain complete physical separation between the low-voltage (12 V) side and the mains side.
• Do not handle the mains side unless you have specific and certified training.
• Use junction boxes, terminal blocks, and insulation suitable for mains electricity.

Possible improvements and extensions

• Add a 12 V siren in parallel with the lamp to have both audible and visual alarms.
• Add a timer (for example, using an RC circuit with a transistor or a small microcontroller) so that the light turns off by itself X minutes after opening the door.
• Implement a manual deactivation switch that allows you to temporarily disable the alarm without dismantling the system.
• Integrate an additional sensor (for example, an ambient light sensor) so that the lamp only activates at night.
