Practical case: Automating a fan with relay and thermostat

Materials

• 1 × 12 V DC power supply (adapter or lab supply, at least 1 A).
• 1 × 12 V DC fan (PC type, 80 mm or 120 mm, 2 wires).
• 1 × 12 V DC relay with SPDT contacts (1 changeover) and contact current ≥ 2 A.
• 1 × Bimetal mechanical thermostat with normally open (NO) contact, 12 V / 1 A minimum (KSD type or similar).
• 1 × Freewheel diode 1N4007 (or equivalent 1N400x).
• 1 × Red or green indicator LED (approx. 2 V).
• 1 × 1 kΩ 1/4 W resistor (to limit LED current).
• 1 × Main switch (optional) 12 V / 2 A minimum.
• 1 × Breadboard or terminal strip.
• Breadboard jumpers or flexible wire for connections.
• 1 × Digital multimeter.

Wiring guide

We will consider a single 12 V supply that powers the relay coil, the fan and the LED.

• Main supply:
  • Connect the positive terminal of the 12 V supply to the node labeled “+12V”.
  • Connect the negative terminal of the 12 V supply to the node labeled “GND”.
• Main switch (optional but recommended):
  • Connect one terminal of the switch to the +12V of the supply.
  • Connect the other terminal of the switch to the “+12V_SW” node (switched 12 V output).
  • The +12V_SW node will be the powered positive that we will use for the rest of the circuit.
• Relay coil:
  • Connect one end of the relay coil (coil pin 1) to the +12V_SW node.
  • Connect the other end of the relay coil (coil pin 2) to the common contact of the thermostat (“COM_T” terminal).
  • Connect the normally open (NO) contact of the thermostat to the GND node.
  • In this way, when the thermostat detects high temperature, it closes the contact and connects the relay coil to GND.
• Protection (freewheel) diode on the coil:
  • Connect the cathode of the 1N4007 diode (marked with the band) to the +12V_SW node (positive side of the coil).
  • Connect the anode of the 1N4007 diode to coil pin 2 (node between coil and thermostat, labeled “N_BOBINA”).
  • The diode will be in parallel with the coil, but reverse-biased (it does not conduct during normal operation).
• Relay power contacts (for the fan):
  • Connect the common (COM) terminal of the relay contacts to +12V_SW.
  • Connect the relay’s normally open (NO) terminal to the fan’s positive wire (red).
  • Connect the fan’s negative wire (black) directly to GND.
  • Thus, when the relay is activated, the COM–NO contact closes and powers the fan.
• Coil activation indicator LED:
  • Connect one end of the 1 kΩ resistor to the +12V_SW node.
  • Connect the other end of the 1 kΩ resistor to the LED anode.
  • Connect the LED cathode to the N_BOBINA node (coil pin 2, thermostat side).
  • The LED will light when current flows through the coil (when the thermostat is closed and the relay is activated).

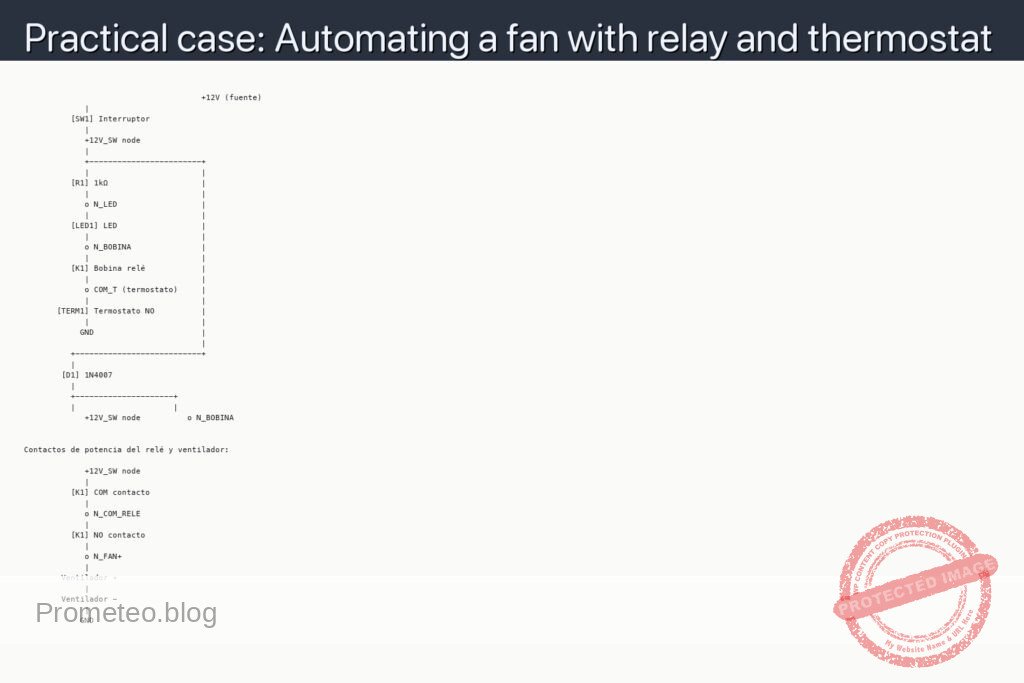

Schematic

                                      +12V (fuente)
             |
          [SW1] Interruptor
             |
             +12V_SW node
             |
             +------------------------+
             |                        |
          [R1] 1kΩ                    |
             |                        |
             o N_LED                  |
             |                        |
          [LED1] LED                  |
             |                        |
             o N_BOBINA               |
             |                        |
          [K1] Bobina relé            |
             |                        |
             o COM_T (termostato)     |
             |                        |
       [TERM1] Termostato NO          |
             |                        |
            GND                       |
                                      |
          +---------------------------+
          |
        [D1] 1N4007
          |
          +---------------------+
          |                     |
             +12V_SW node          o N_BOBINA

Contactos de potencia del relé y ventilador:

             +12V_SW node
             |
          [K1] COM contacto
             |
             o N_COM_RELE
             |
          [K1] NO contacto
             |
             o N_FAN+
             |
        Ventilador +
             |
        Ventilador -
             |
            GND

Measurements and tests

• Supply verification:
  • Measure the voltage between +12V and GND with the multimeter in DC voltmeter mode; you should read between 11.5 V and 12.5 V.
  • With switch SW1 closed, measure the voltage between +12V_SW and GND; it should be approximately the same as at the supply.
  • With SW1 open, the voltage between +12V_SW and GND should be 0 V.
• Checking the relay coil:
  • With the system cold (thermostat open), measure the voltage between N_BOBINA and GND: it should be ~0 V (not activated).
  • Heat the thermostat (for example, with a hair dryer at a safe distance) until it activates:
    • You should hear a “click” in the relay.
    • Measure the voltage between N_BOBINA and GND: it should be close to 0 V (because that side of the coil is connected to GND through the thermostat).
    • Measure the voltage between +12V_SW and N_BOBINA: you should see ~12 V (drop across the coil and LED).
• Checking the indicator LED:
  • With the thermostat open (cold), verify that the LED is off; measure the voltage between N_LED and N_BOBINA:
    • It should be ~0 V because no current is flowing.
  • With the thermostat hot (contact closed) and the relay activated:
    • The LED should light.
    • Measure the voltage between N_LED (resistor side) and N_BOBINA (LED cathode side): there should be around 2 V across the LED and the rest (~10 V) across resistor R1.
    • This indicates that the current through the LED is I_LED ≈ (12 V − 2 V) / 1 kΩ ≈ 10 mA, a safe value.
• Checking the fan:
  • Measure the voltage between N_FAN+ (fan positive wire) and GND:
    • Cold thermostat (relay deactivated): ~0 V, fan stopped.
    • Hot thermostat (relay activated): ~12 V, fan spinning at nominal speed.
  • If your multimeter has a current function:
    • Place the multimeter in series with the fan positive wire (between N_FAN+ and the fan) and measure the current I_FAN:
      • Typical values between 0.1 A and 0.3 A for small PC fans.
      • Make sure not to exceed the relay contacts’ maximum current.

Common mistakes and how to avoid them

• Reversing the 1N4007 diode:
  • If you connect the diode the other way round (anode to +12V_SW and cathode to N_BOBINA), a direct short circuit will occur when powering the system.
  • Remember: the diode’s band (cathode) goes to +12V_SW, the anode to N_BOBINA.
• Confusing coil contacts with relay power contacts:
  • Check in the datasheet or package diagram which pins are the coil and which are COM, NO and NC.
  • A typical mistake is connecting the fan to the coil pins, which will not work and may damage the coil or the fan.
• Forgetting the freewheel diode:
  • Without the diode, when the thermostat opens, a high voltage spike is generated by the coil that can damage the thermostat, the switch or the supply.
  • Always place the diode in parallel with the relay coil.
• Underestimating the fan current:
  • Make sure the relay supports at least 2–3 times the fan’s nominal current as a safety margin, especially if the fan has a hard start.
  • Check the specs on the fan housing (for example, “12 V 0.18 A”).

Safety

• Always work with low voltage (12 V DC in this case); do not connect anything directly to the 230 V/120 V mains.
• Before modifying wires or changing connections, disconnect the power supply.
• Double-check polarity (+ and GND) before powering:
  • An accidental polarity reversal can damage the fan, the relay and the LED.
• Do not completely block the fan during tests; let air circulate freely so as not to strain the motor.

Possible improvements

• Replace the mechanical thermostat with a temperature sensor (for example, NTC or digital sensor) and a microcontroller (Arduino) to set the trip temperature in software.
• Add a second relay or a buzzer that indicates excessive temperature when the fan does not start (fault).
• Use a MOSFET and a solid-state relay if you later want to switch higher power loads or at higher frequency.
• Integrate a fuse in series with the fan for short-circuit protection.

With this practical case you will have learned to use a relay to switch a moderate power load (the fan) from a simple low-power control signal (the thermostat), as well as to apply good practices such as the freewheel diode and the use of LED indicators.
