Practical case: Veto Voting System

Level: Basic
Implement a logic circuit where a proposal passes only if two members vote «Yes» and a third member grants approval (no veto), using a single 74HC00 IC.

Objective and use case

In this practical case, you will build a decision-making circuit using digital logic. The system represents a committee where Member A and Member B must both vote in favor for a motion to pass, but Member C (the Chairperson) holds an «Authorization Key.» If Member C does not activate their switch (Logic Low), the vote is vetoed regardless of A and B.

Corporate Governance: Models a board where majority support is needed but the CEO has final approval.
Safety Interlocks: Represents a machine press where two operators must press buttons (A and B), but a Master Enable key (C) must be inserted for the machine to run.
Security Access: Requires two distinct user keys plus a central server authorization signal.

Expected Outcome:
* Output High (LED ON): Only when Input A is High, Input B is High, AND Input C is High.
* Output Low (LED OFF): Any other combination (e.g., if A or B vote «No», or if C exerts veto by setting their input Low).
* Target Audience: Students and hobbyists learning to construct complex logic functions (3-input AND) using universal NAND gates.

Materials

U1: 74HC00 (Quad 2-Input NAND Gate)
SW1: 3-position DIP Switch (or three individual SPST switches), function: Inputs A, B, and C
R1: 10 kΩ resistor, function: pull-down for Input A
R2: 10 kΩ resistor, function: pull-down for Input B
R3: 10 kΩ resistor, function: pull-down for Input C
R4: 330 Ω resistor, function: LED current limiting
D1: Red LED, function: Logic Output Indicator
V1: 5 V DC Power Supply

Pin-out of the IC used

Chip: 74HC00 (Quad 2-input NAND)
This project utilizes all four gates inside the chip to create a 3-input AND function (Y = A · B · C).

Pin	Name	Logic Function	Connection in this case
1	1 A	Input	Connect to Switch A
2	1B	Input	Connect to Switch B
3	1Y	Output	Output of Gate 1 (\overlineA · B)
4	2 A	Input	Connect to Pin 3 (1Y)
5	2B	Input	Connect to Pin 3 (1Y)
6	2Y	Output	Output of Gate 2 (Inverted 1Y \to A · B)
7	GND	Ground	Connect to Power Supply 0 V
8	3Y	Output	Output of Gate 3 (\overline(A · B) · C)
9	3 A	Input	Connect to Switch C
10	3B	Input	Connect to Pin 6 (2Y)
11	4Y	Output	Final Output (drives LED)
12	4 A	Input	Connect to Pin 8 (3Y)
13	4B	Input	Connect to Pin 8 (3Y)
14	VCC	Power	Connect to +5 V

Wiring guide

VCC: Connect V1 positive terminal, U1 pin 14, and the common side of SW1.
GND: Connect V1 negative terminal, U1 pin 7, R1 (bottom), R2 (bottom), R3 (bottom), and D1 (cathode).
Input_A: Connect SW1 (Switch 1) to R1 (top) and U1 pin 1.
Input_B: Connect SW1 (Switch 2) to R2 (top) and U1 pin 2.
Input_C (Veto): Connect SW1 (Switch 3) to R3 (top) and U1 pin 9.
Node_NAND1: Connect U1 pin 3 (Output 1) to U1 pin 4 and U1 pin 5 (Inputs of Gate 2).
Node_AND_AB: Connect U1 pin 6 (Output 2) to U1 pin 10 (Input of Gate 3).
Node_NAND_FINAL: Connect U1 pin 8 (Output 3) to U1 pin 12 and U1 pin 13 (Inputs of Gate 4).
Vout: Connect U1 pin 11 (Final Output) to R4 (one side).
LED_Anode: Connect R4 (other side) to D1 (anode).

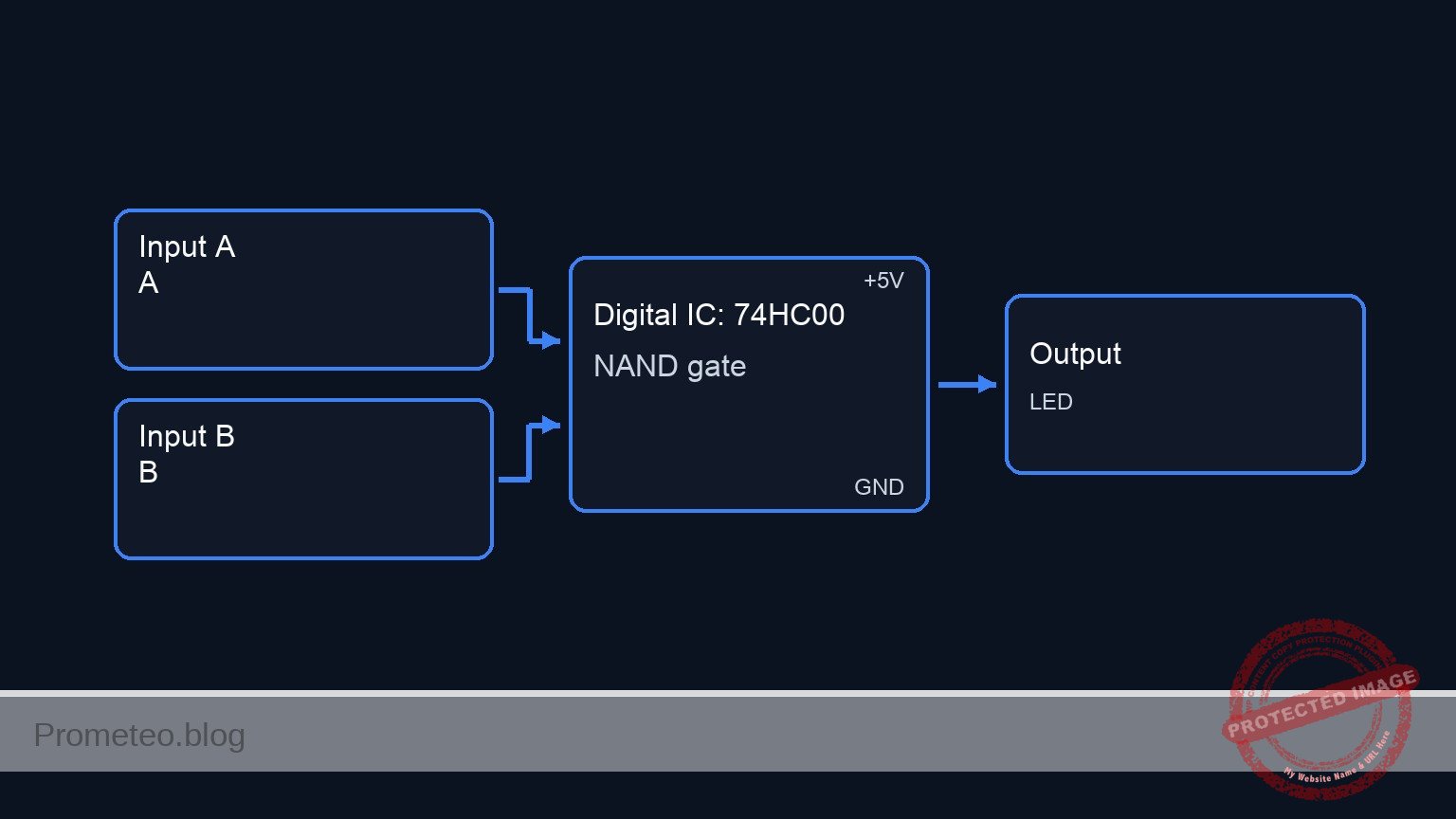

Conceptual block diagram

Schematic

Practical Case: Veto Voting System (74HC00 Logic Flow)

INPUTS (Active High)           LOGIC PROCESSING (74HC00 Quad NAND)                               OUTPUT
=======================================================================================================

[ SW A + R1 ] --(Pin 1)-->+
                          |
                    [ U1: Gate 1 ] --(Pin 3)--> [ U1: Gate 2 ] --(Pin 6)---+
                    [ 2-In NAND  ]              [ NAND as NOT]             |
                          |                     (Pins 4+5)                 |
[ SW B + R2 ] --(Pin 2)-->+                                                |
                                                                           |
                                                                           v
                                                                     [ U1: Gate 3 ] --(Pin 8)--> [ U1: Gate 4 ] --(Pin 11)--> [ R4: 330R ] --> [ D1: LED ] --> GND
                                                                     [ 2-In NAND  ]              [ NAND as NOT]
                                                                     (Pin 10)      \             (Pins 12+13)
                                                                                    \
[ SW C + R3 ] -------------------------------------------------------(Pin 9)---------+
(Veto/Enable)

=======================================================================================================
Logic Summary:
1. Gate 1 & 2 form an AND gate for Inputs A & B.
2. Gate 3 & 4 form an AND gate for (Result of A/B) & Input C.
3. Final Function: LED turns ON only if A AND B AND C are all High.

Electrical Schematic

Truth table

The circuit implements the logic function Y = A · B · C.
* A/B: Voters
* C: Chairman/Authorization (0 = Veto/Block, 1 = Allow)

Input A (Voter 1)	Input B (Voter 2)	Input C (Authorization)	Output Y (LED)	Result
0	0	0	0	Fail
0	1	1	0	Fail (Lack of votes)
1	0	1	0	Fail (Lack of votes)
1	1	0	0	VETOED
1	1	1	1	Approved

Measurements and tests

Supply Check: Before inserting the IC, verify 5 V between VCC and GND lines on your breadboard.
Default State: Ensure all switches are OFF. Power on. LED should be OFF.
Veto Test: Turn Switch A and Switch B ON (High). Keep Switch C OFF (Low).
- Observation: LED must remain OFF. This confirms the Veto is active.
Approval Test: With A and B still ON, turn Switch C ON.
- Observation: LED should light up (Logic High, approx 3.5 V – 4.5 V).
Single Vote Test: Turn Switch A OFF while B and C are ON.
- Observation: LED should turn OFF.

SPICE netlist and simulation

Reference SPICE Netlist (ngspice) — excerptFull SPICE netlist (ngspice)

* Practical case: Veto Voting System
.width out=256

* ==============================================================================
* Components and Models
* ==============================================================================

* LED Model
.model DLED D(IS=1e-22 RS=10 N=1.5 CJO=10p)

* 74HC00 Quad 2-Input NAND Gate Subcircuit
* Pins: 1=1A, 2=1B, 3=1Y, 4=2A, 5=2B, 6=2Y, 7=GND, 8=3Y, 9=3A, 10=3B, 11=4Y, 12=4A, 13=4B, 14=VCC
.subckt 74HC00 1 2 3 4 5 6 7 8 9 10 11 12 13 14
* Logic Threshold (2.5V) and Gain (20)
.param Vth=2.5
.param K=20
* Gate 1: Inputs 1,2 -> Output 3
B1 3 7 V = V(14,7) * (1 - (1/(1+exp(-K*(V(1,7)-Vth)))) * (1/(1+exp(-K*(V(2,7)-Vth)))))
* Gate 2: Inputs 4,5 -> Output 6
B2 6 7 V = V(14,7) * (1 - (1/(1+exp(-K*(V(4,7)-Vth)))) * (1/(1+exp(-K*(V(5,7)-Vth)))))
* ... (truncated in public view) ...

Copy this content into a .cir file and run with ngspice.

🔒 Part of this section is premium. With the 7-day pass or the monthly membership you can access the full content (materials, wiring, detailed build, validation, troubleshooting, variants and checklist) and download the complete print-ready PDF pack.

🔓 See premium access plans

* Practical case: Veto Voting System
.width out=256

* ==============================================================================
* Components and Models
* ==============================================================================

* LED Model
.model DLED D(IS=1e-22 RS=10 N=1.5 CJO=10p)

* 74HC00 Quad 2-Input NAND Gate Subcircuit
* Pins: 1=1A, 2=1B, 3=1Y, 4=2A, 5=2B, 6=2Y, 7=GND, 8=3Y, 9=3A, 10=3B, 11=4Y, 12=4A, 13=4B, 14=VCC
.subckt 74HC00 1 2 3 4 5 6 7 8 9 10 11 12 13 14
* Logic Threshold (2.5V) and Gain (20)
.param Vth=2.5
.param K=20
* Gate 1: Inputs 1,2 -> Output 3
B1 3 7 V = V(14,7) * (1 - (1/(1+exp(-K*(V(1,7)-Vth)))) * (1/(1+exp(-K*(V(2,7)-Vth)))))
* Gate 2: Inputs 4,5 -> Output 6
B2 6 7 V = V(14,7) * (1 - (1/(1+exp(-K*(V(4,7)-Vth)))) * (1/(1+exp(-K*(V(5,7)-Vth)))))
* Gate 3: Inputs 9,10 -> Output 8
B3 8 7 V = V(14,7) * (1 - (1/(1+exp(-K*(V(9,7)-Vth)))) * (1/(1+exp(-K*(V(10,7)-Vth)))))
* Gate 4: Inputs 12,13 -> Output 11
B4 11 7 V = V(14,7) * (1 - (1/(1+exp(-K*(V(12,7)-Vth)))) * (1/(1+exp(-K*(V(13,7)-Vth)))))
.ends 74HC00

* ==============================================================================
* Main Circuit Wiring
* ==============================================================================

* Power Supply (V1)
V1 VCC 0 DC 5

* Inputs (Simulating Switches SW1 positions A, B, C)
* Generating dynamic pulses to test the truth table (000 to 111)
* Input A (LSB, Period 100us)
Va Input_A 0 PULSE(0 5 10u 1u 1u 50u 100u)
* Input B (Period 200us)
Vb Input_B 0 PULSE(0 5 10u 1u 1u 100u 200u)
* Input C (MSB, Period 400us)
Vc Input_C 0 PULSE(0 5 10u 1u 1u 200u 400u)

* Pull-down Resistors (R1, R2, R3)
R1 Input_A 0 10k
R2 Input_B 0 10k
R3 Input_C 0 10k

* Logic IC U1 (74HC00)
* Connectivity based on Wiring Guide:
* Pin 1 (In A) -> Input_A
* Pin 2 (In B) -> Input_B
* Pin 3 (Out 1) -> Node_NAND1
* Pin 4 (In 2A) -> Node_NAND1
* Pin 5 (In 2B) -> Node_NAND1
* Pin 6 (Out 2) -> Node_AND_AB
* Pin 7 (GND)   -> 0
* Pin 8 (Out 3) -> Node_NAND_FINAL
* Pin 9 (In 3A) -> Input_C
* Pin 10 (In 3B)-> Node_AND_AB
* Pin 11 (Out 4)-> Vout
* Pin 12 (In 4A)-> Node_NAND_FINAL
* Pin 13 (In 4B)-> Node_NAND_FINAL
* Pin 14 (VCC)  -> VCC
XU1 Input_A Input_B Node_NAND1 Node_NAND1 Node_NAND1 Node_AND_AB 0 Node_NAND_FINAL Input_C Node_AND_AB Vout Node_NAND_FINAL Node_NAND_FINAL VCC 74HC00

* Output Stage
R4 Vout LED_Anode 330
D1 LED_Anode 0 DLED

* ==============================================================================
* Simulation Commands
* ==============================================================================

.op
.tran 1u 500u

* Print Inputs and Output to check logic (Vout should be High only when A, B, C are High)
.print tran V(Input_A) V(Input_B) V(Input_C) V(Vout)

.end

Simulation Results (Transient Analysis)

Analysis: The simulation successfully sweeps inputs A, B, and C. Vout is High (5V) only when A, B, and C are all High (e.g., around 33us, 301us, 559us). In all other states (000, 011, 101, 110, etc.), Vout remains Low (~0V). This matches the logic Y = A · B · C.

Show raw data table (671 rows)

Index   time            v(input_a)      v(input_b)      v(input_c)      v(vout)
0	0.000000e+00	0.000000e+00	0.000000e+00	0.000000e+00	-6.01853e-36
1	1.000000e-08	0.000000e+00	0.000000e+00	0.000000e+00	-6.01853e-36
2	2.000000e-08	0.000000e+00	0.000000e+00	0.000000e+00	-6.01853e-36
3	4.000000e-08	0.000000e+00	0.000000e+00	0.000000e+00	-6.01853e-36
4	8.000000e-08	0.000000e+00	0.000000e+00	0.000000e+00	-6.01853e-36
5	1.600000e-07	0.000000e+00	0.000000e+00	0.000000e+00	-6.01853e-36
6	3.200000e-07	0.000000e+00	0.000000e+00	0.000000e+00	-6.01853e-36
7	6.400000e-07	0.000000e+00	0.000000e+00	0.000000e+00	-6.01853e-36
8	1.280000e-06	0.000000e+00	0.000000e+00	0.000000e+00	-6.01853e-36
9	2.280000e-06	0.000000e+00	0.000000e+00	0.000000e+00	-6.01853e-36
10	3.280000e-06	0.000000e+00	0.000000e+00	0.000000e+00	-6.01853e-36
11	4.280000e-06	0.000000e+00	0.000000e+00	0.000000e+00	-6.01853e-36
12	5.280000e-06	0.000000e+00	0.000000e+00	0.000000e+00	-6.01853e-36
13	6.280000e-06	0.000000e+00	0.000000e+00	0.000000e+00	-6.01853e-36
14	7.280000e-06	0.000000e+00	0.000000e+00	0.000000e+00	-6.01853e-36
15	8.280000e-06	0.000000e+00	0.000000e+00	0.000000e+00	-6.01853e-36
16	9.280000e-06	0.000000e+00	0.000000e+00	0.000000e+00	-6.01853e-36
17	1.000000e-05	0.000000e+00	0.000000e+00	0.000000e+00	-6.01853e-36
18	1.010000e-05	5.000000e-01	5.000000e-01	5.000000e-01	-6.01853e-36
19	1.030000e-05	1.500000e+00	1.500000e+00	1.500000e+00	-6.01853e-36
20	1.048757e-05	2.437858e+00	2.437858e+00	2.437858e+00	-6.01853e-36
21	1.071179e-05	3.558937e+00	3.558937e+00	3.558937e+00	5.000000e+00
22	1.085965e-05	4.298271e+00	4.298271e+00	4.298271e+00	5.000000e+00
23	1.099537e-05	4.976846e+00	4.976846e+00	4.976846e+00	5.000000e+00
... (647 more rows) ...

Common mistakes and how to avoid them

Floating Inputs: Forgetting the pull-down resistors (R1, R2, R3). Without them, the CMOS inputs of the 74HC00 will float, causing erratic switching or oscillation.
Confusing Pinout: The 74HC00 pinout is standard, but mixing up Input pins (e.g., 1 A/1B) with Output pins (e.g., 1Y) is common. Double-check the datasheet diagram.
Misinterpreting «Veto»: In this design, Input C is an «Enable» line (Active High). If you think of Veto as «Switch ON to Block» (Active Low logic), the wiring of Switch C would need to be inverted. Here, Switch C ON means «Authorize».

Troubleshooting

LED never turns ON: Check that the LED polarity is correct (Anode to resistor, Cathode to GND). Verify U1 is powered (Pin 14 to 5 V, Pin 7 to GND).
LED stays ON even when switches are OFF: Check if R1, R2, or R3 are missing or disconnected. Ensure you are not using NC (Normally Closed) switches by mistake.
Circuit works for A and B but C has no effect: Check the wiring on Gate 3 (Pins 8, 9, 10). Ensure pin 9 connects to Switch C and pin 10 connects to the output of the previous stage (Pin 6).

Possible improvements and extensions

Veto Indicator: Add a second LED (Green) driven by an unused gate (or a transistor) connected to Input C, indicating «Session Open» (Authorization Granted) or «Session Locked» (Veto).
Majority Vote Modification: Redesign the circuit to allow the proposal to pass if any two of the three members (A, B, C) vote Yes, removing the specific veto power and making all members equal.
