Practical case: Window sensor security alarm

Window sensor security alarm prototype (Maker Style)

Level: Basic | Build a fail-safe alarm system using NAND logic to detect open windows.

Objective and use case

In this practical case, you will build a digital logic circuit that monitors two window sensors. The alarm will remain silent (LED OFF) only when both windows are securely closed. If either window is opened—or if a wire is cut—the alarm triggers (LED ON).

  • Home Security: Monitoring multiple entry points (windows/doors) where all must be closed to secure the perimeter.
  • Machine Safety: Ensuring all safety guards or maintenance hatches are closed before a machine can operate (or signaling a fault if opened).
  • Fail-Safe Design: Demonstrating how active-high loops detect broken wires or open switches as alarm conditions.

Expected outcome:
* Safe State: When both switches (windows) are closed (Logic 1), the Output is 0 V (LED OFF).
* Alarm State: If Switch 1 OR Switch 2 is opened (Logic 0), the Output rises to ≈ 5 V (LED ON).
* Logic Verification: Confirmation of the NAND truth table behavior where Output is LOW only if all inputs are HIGH.

Target audience: Electronics students and hobbyists learning basic digital logic gates.

Materials

  • V1: 5 V DC power supply, function: Main circuit power
  • U1: 74HC00, function: Quad 2-input NAND gate IC
  • SW1: SPST switch, function: Window 1 sensor (Closed = Window Closed)
  • SW2: SPST switch, function: Window 2 sensor (Closed = Window Closed)
  • R1: 10 kΩ resistor, function: Pull-down for SW1
  • R2: 10 kΩ resistor, function: Pull-down for SW2
  • R3: 330 Ω resistor, function: Current limiting for LED
  • D1: Red LED, function: Alarm indicator

Pin-out of the IC used

Chip Selected: 74HC00 (Quad 2-Input NAND Gate)

Pin Name Logic Function Connection in this case
1 1 A Input A Connected to Node SENS1
2 1B Input B Connected to Node SENS2
3 1Y Output Connected to Node ALARM_OUT
7 GND Ground Connected to Node 0 (GND)
14 VCC Power Supply Connected to Node VCC (5 V)

Wiring guide

This guide uses specific node names to help you visualize the connections on a breadboard.

  • Power Rail: Connect V1 positive terminal to node VCC and negative terminal to node 0.
  • IC Power: Connect U1 pin 14 to VCC and U1 pin 7 to 0.
  • Sensor 1: Connect SW1 between VCC and node SENS1.
  • Pull-down 1: Connect R1 between SENS1 and 0.
  • Sensor 2: Connect SW2 between VCC and node SENS2.
  • Pull-down 2: Connect R2 between SENS2 and 0.
  • Logic Input: Connect U1 pin 1 (1 A) to SENS1 and U1 pin 2 (1B) to SENS2.
  • Logic Output: Connect U1 pin 3 (1Y) to node ALARM_OUT.
  • Indicator: Connect R3 between ALARM_OUT and the Anode of D1.
  • LED Ground: Connect the Cathode of D1 to node 0.

Conceptual block diagram

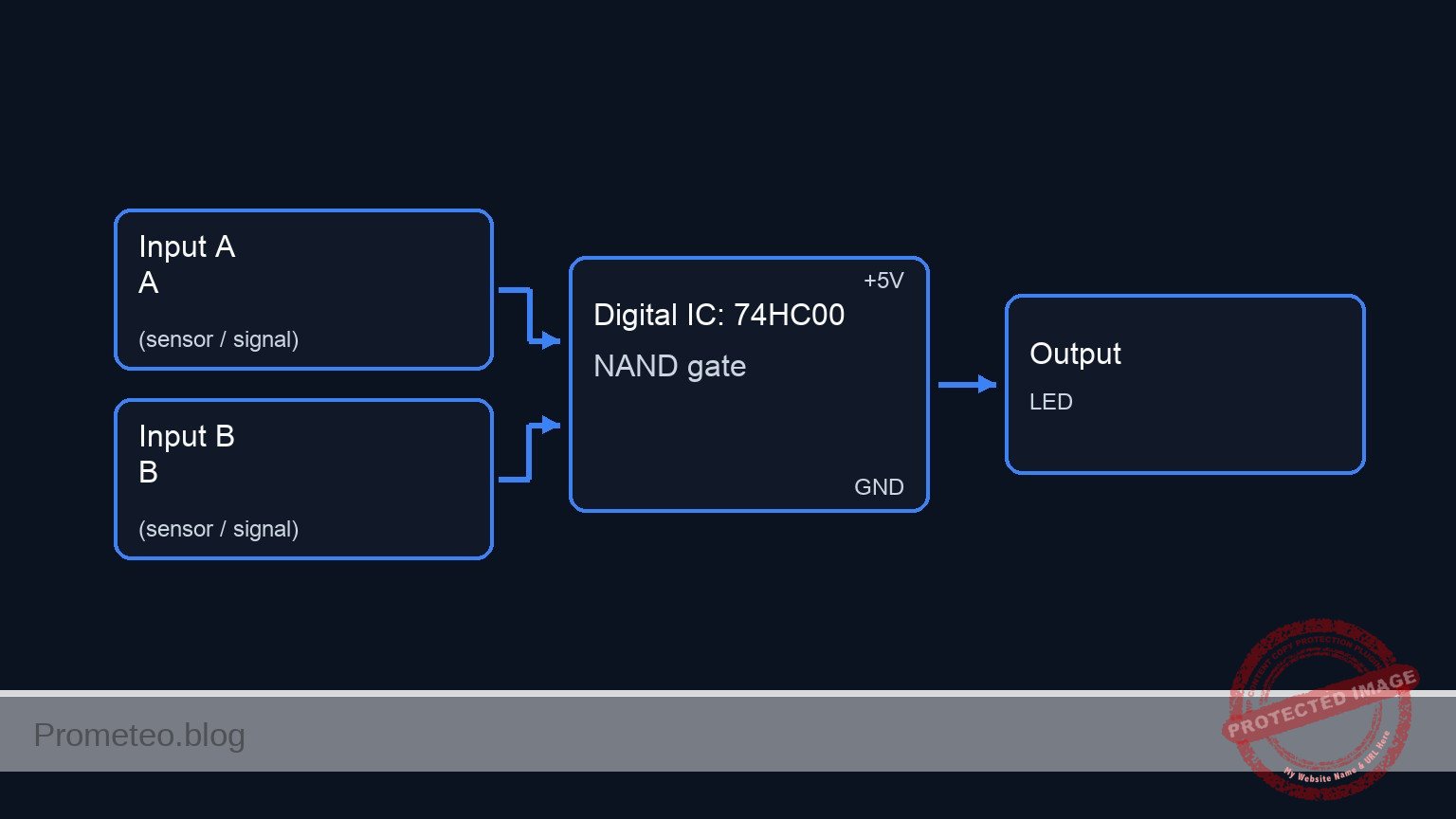

Conceptual block diagram — 74HC00 NAND gate
Quick read: inputs → main block → output (actuator or measurement). This summarizes the ASCII schematic below.

Schematic

Title: Practical case: Window sensor security alarm

(Input Stage: Sensors)                  (Processing Stage: Logic)             (Output Stage: Alarm)

[ VCC ]
   |
[ SW1: Window 1 ]
   |
   +--(SENS1)-------+-----------------> [ U1: Pin 1 (Input A) ]
                    |                                         |
                 [ R1: 10k ]                                  v
                    |                                 [ U1: NAND Gate ] --(ALARM_OUT)--> [ R3: 330 Ω ] --> [ D1: LED ] --> GND
                 [ GND ]                                      ^
                                                              |
[ VCC ]             |                                         |
   |                |                                         |
[ SW2: Window 2 ]   |                                         |
   |                |                                         |
   +--(SENS2)-------+-----------------> [ U1: Pin 2 (Input B) ]
                    |
                 [ R2: 10k ]
                    |
                 [ GND ]
Electrical Schematic

Truth table

The 74HC00 implements the NAND function. In this security context, Logic 1 represents a «Closed Window» (Safe), and Logic 0 represents an «Open Window» (Breach).

Window 1 (SW1) Window 2 (SW2) Input A (Pin 1) Input B (Pin 2) Output Y (Pin 3) LED State Status
Closed Closed 1 (High) 1 (High) 0 (Low) OFF Secure
Open Closed 0 (Low) 1 (High) 1 (High) ON ALARM
Closed Open 1 (High) 0 (Low) 1 (High) ON ALARM
Open Open 0 (Low) 0 (Low) 1 (High) ON ALARM

Measurements and tests

Follow these steps to validate your alarm system:

  1. Initial Power-Up: Ensure both switches (SW1, SW2) are closed. Turn on the 5 V supply. The LED D1 should be OFF.
  2. Voltage Check (Secure): Use a multimeter to measure the voltage at node ALARM_OUT. It should be close to 0 V (< 0.2 V).
  3. Breach Test 1: Open SW1 while keeping SW2 closed. The LED should turn ON. Measure ALARM_OUT; it should read close to 5 V.
  4. Breach Test 2: Close SW1 and open SW2. The LED should turn ON.
  5. Total Breach: Open both switches. The LED should remain ON.

SPICE netlist and simulation

Reference SPICE Netlist (ngspice) — excerptFull SPICE netlist (ngspice)

* Practical case: Window sensor security alarm
.width out=256
* ngspice netlist

* --- Component Models ---
* Switch model for SW1 and SW2 (Sensors)
* Vt=2.5V: Switch closes when control voltage > 2.5V
* Ron=1m: Low resistance when closed
* Roff=100Meg: High resistance when open
.model SW_MOD SW(Vt=2.5 Ron=1m Roff=100Meg)

* LED model for D1
.model LED_RED D(IS=1e-22 RS=5 N=1.5 CJO=10p BV=5)

* --- Power Supply ---
* V1: 5 V DC power supply connected to VCC and 0 (GND)
V1 VCC 0 DC 5

* --- Window Sensor 1 ---
* Control source V_ACT1 simulates the physical action of opening/closing Window 1
* ... (truncated in public view) ...

Copy this content into a .cir file and run with ngspice.

🔒 Part of this section is premium. With the 7-day pass or the monthly membership you can access the full content (materials, wiring, detailed build, validation, troubleshooting, variants and checklist) and download the complete print-ready PDF pack.

🔓 See premium access plans

* Practical case: Window sensor security alarm
.width out=256
* ngspice netlist

* --- Component Models ---
* Switch model for SW1 and SW2 (Sensors)
* Vt=2.5V: Switch closes when control voltage > 2.5V
* Ron=1m: Low resistance when closed
* Roff=100Meg: High resistance when open
.model SW_MOD SW(Vt=2.5 Ron=1m Roff=100Meg)

* LED model for D1
.model LED_RED D(IS=1e-22 RS=5 N=1.5 CJO=10p BV=5)

* --- Power Supply ---
* V1: 5 V DC power supply connected to VCC and 0 (GND)
V1 VCC 0 DC 5

* --- Window Sensor 1 ---
* Control source V_ACT1 simulates the physical action of opening/closing Window 1
* Logic: High (5V) = Window Closed, Low (0V) = Window Open
* Timing: Toggles every 100us (Period 200us)
V_ACT1 ACT1 0 PULSE(0 5 0 1u 1u 100u 200u)

* SW1: Connects VCC to SENS1 when window is closed
S1 VCC SENS1 ACT1 0 SW_MOD

* R1: Pull-down resistor for SENS1 (10k)
R1 SENS1 0 10k

* --- Window Sensor 2 ---
* Control source V_ACT2 simulates Window 2
* Timing: Toggles every 200us (Period 400us) to test all truth table combinations
V_ACT2 ACT2 0 PULSE(0 5 0 1u 1u 200u 400u)

* SW2: Connects VCC to SENS2 when window is closed
S2 VCC SENS2 ACT2 0 SW_MOD

* R2: Pull-down resistor for SENS2 (10k)
R2 SENS2 0 10k

* --- Logic IC: U1 (74HC00) ---
* Quad 2-input NAND gate. We instantiate one gate.
* Pin mapping according to wiring guide:
* Pin 1 (Input A) -> SENS1
* Pin 2 (Input B) -> SENS2
* Pin 3 (Output Y) -> ALARM_OUT
* Pin 7 -> GND (0), Pin 14 -> VCC
XU1 SENS1 SENS2 ALARM_OUT 0 VCC 74HC00_GATE

* Subcircuit for NAND Gate using robust continuous functions
.subckt 74HC00_GATE A B Y GND VCC
* Logic: Y = NAND(A, B) = NOT(A AND B)
* Implemented using sigmoid functions for convergence:
* 1 / (1 + exp(-k*(V-Vth))) acts as a smooth logical comparator.
* Vth = 2.5V, k = 20
B_NAND Y GND V = V(VCC) * (1 - ( (1/(1+exp(-20*(V(A)-2.5)))) * (1/(1+exp(-20*(V(B)-2.5)))) ))
.ends

* --- Alarm Output Indicator ---
* R3: Current limiting resistor (330 Ohm)
R3 ALARM_OUT LED_ANODE 330

* D1: Red LED connected to Ground
D1 LED_ANODE 0 LED_RED

* --- Simulation Commands ---
.op
* Transient analysis for 500us to capture all logic states
.tran 1u 500u

* Output configuration
* We print the Sensor inputs and the Alarm output
.print tran V(SENS1) V(SENS2) V(ALARM_OUT) V(LED_ANODE)

.end

Simulation Results (Transient Analysis)

Simulation Results (Transient Analysis)

Analysis: The simulation correctly implements the NAND logic truth table. When both sensors are High (5V, Closed), the Output is Low (~0V). If either or both sensors are Low (Open), the Output goes High (5V), activating the LED (approx 1.83V at anode).
Show raw data table (657 rows)
Index   time            v(sens1)        v(sens2)        v(alarm_out)    v(led_anode)
0	0.000000e+00	4.999500e-04	4.999500e-04	5.000000e+00	1.833072e+00
1	1.000000e-08	4.999500e-04	4.999500e-04	5.000000e+00	1.833072e+00
2	2.000000e-08	4.999500e-04	4.999500e-04	5.000000e+00	1.833072e+00
3	4.000000e-08	4.999500e-04	4.999500e-04	5.000000e+00	1.833072e+00
4	8.000000e-08	4.999500e-04	4.999500e-04	5.000000e+00	1.833072e+00
5	1.600000e-07	4.999500e-04	4.999500e-04	5.000000e+00	1.833072e+00
6	3.200000e-07	4.999500e-04	4.999500e-04	5.000000e+00	1.833072e+00
7	3.562500e-07	4.999500e-04	4.999500e-04	5.000000e+00	1.833072e+00
8	4.196875e-07	4.999500e-04	4.999500e-04	5.000000e+00	1.833072e+00
9	4.372461e-07	4.999500e-04	4.999500e-04	5.000000e+00	1.833072e+00
10	4.679736e-07	4.999500e-04	4.999500e-04	5.000000e+00	1.833072e+00
11	4.795524e-07	4.999500e-04	4.999500e-04	5.000000e+00	1.833072e+00
12	4.902290e-07	4.999500e-04	4.999500e-04	5.000000e+00	1.833072e+00
13	5.023412e-07	5.000000e+00	5.000000e+00	3.894872e-36	1.057689e+00
14	5.138120e-07	5.000000e+00	5.000000e+00	3.894872e-36	-7.61250e-02
15	5.160398e-07	5.000000e+00	5.000000e+00	3.894872e-36	-3.72798e-02
16	5.172425e-07	5.000000e+00	5.000000e+00	3.894872e-36	-2.57490e-02
17	5.188923e-07	5.000000e+00	5.000000e+00	3.894872e-36	-1.54585e-02
18	5.214063e-07	5.000000e+00	5.000000e+00	3.894872e-36	-6.97976e-03
19	5.238372e-07	5.000000e+00	5.000000e+00	3.894872e-36	-3.25627e-03
20	5.261078e-07	5.000000e+00	5.000000e+00	3.894872e-36	-1.60566e-03
21	5.281984e-07	5.000000e+00	5.000000e+00	3.894872e-36	-8.40881e-04
22	5.304310e-07	5.000000e+00	5.000000e+00	3.894872e-36	-4.20300e-04
23	5.328536e-07	5.000000e+00	5.000000e+00	3.894872e-36	-1.97001e-04
... (633 more rows) ...

Common mistakes and how to avoid them

  1. Floating Inputs: Forgetting R1 or R2 causes the inputs to «float» when switches are open, leading to erratic LED flickering. Solution: Always ensure inputs have a path to ground (via pull-down resistors) when the switch is open.
  2. LED Polarity: Connecting the LED backwards prevents it from lighting up even when the alarm is active. Solution: Ensure the longer leg (Anode) faces the resistor and IC output.
  3. Incorrect Switch Wiring: Placing the switch in parallel with the resistor instead of in series with the voltage source creates a short circuit. Solution: Follow the wiring guide: VCC -> Switch -> Node -> Resistor -> GND.

Troubleshooting

  • Symptom: LED is always ON, even when switches are closed.
    • Cause: One of the switches is not making contact, or an input wire is loose.
    • Fix: Check continuity across SW1 and SW2; ensure pin 1 and pin 2 actually receive 5 V.
  • Symptom: LED never turns ON.
    • Cause: LED is reversed, IC is not powered, or R3 is too high.
    • Fix: Check pin 14 for 5 V. Reverse the LED. Verify R3 is 330 Ω, not 330 kΩ.
  • Symptom: Logic works reversed (LED ON when safe, OFF when open).
    • Cause: You may be using an AND gate (74HC08) instead of NAND, or your switch/resistor logic is inverted (Pull-ups instead of Pull-downs).
    • Fix: Verify the chip number is 74HC00.

Possible improvements and extensions

  1. Audible Alarm: Connect the base of an NPN transistor to ALARM_OUT to drive a 5 V active buzzer, adding sound to the light.
  2. Latching Alarm: Use the remaining gates in the 74HC00 to build an SR Latch. This would keep the alarm sounding even if the burglar closes the window immediately after entering.
